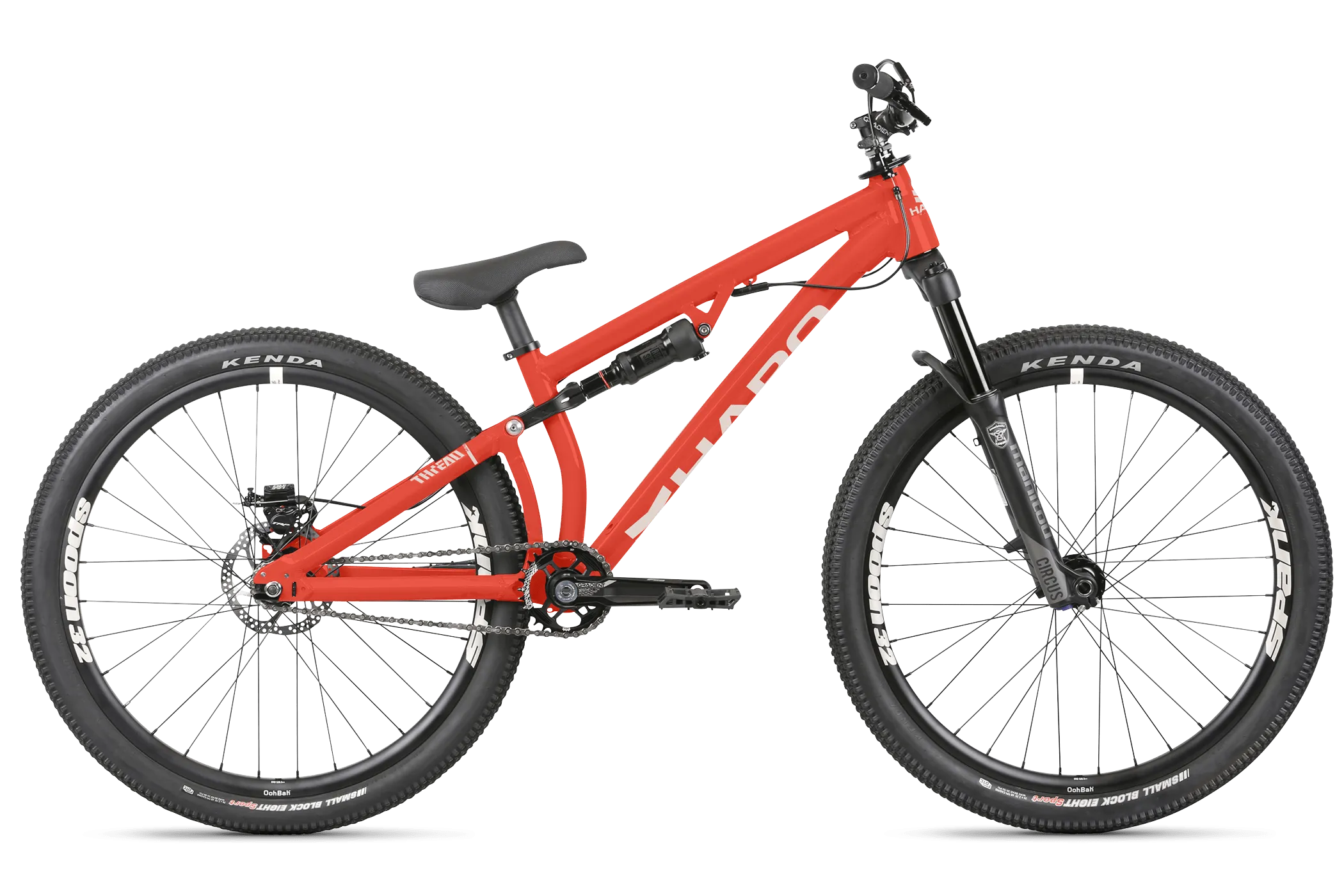

The Thread Slope is the ultimate model in the Haro Thread dirt jump line up. With its new X6 tubing dual suspension frame, it features 100mm of front travel with a Manitou Circus Expert fork and 80mm of rear travel without any chain stretch thanks to its central BB shell pivot for a simple, solid and efficient single-speed suspension platform. Light and precise, the Thread Slope features a gravity-proven FSA Gradient cockpit and crankset with a 30-14t gearing ratio, sealed bearing Haro SD Nylon Pedals, Spank Spoon rims, Pivotal MTB saddle and alloy seat-post, and a Haro oversize sealed rotor for fast bar spin action. The Thread Slope offers a unique combination with its custom alloy detangler and hydraulic-assisted rear brake with the innovative TRP HY/RD disc caliper for high-performance braking and bar-spinning experience...
- Thread Slope X6 series frame w/ 80mm travel
- Swing arm pivot around BB shell for no chain stretch in rear wheel travel
- 22.6" TT w/ 420mm/16.5" reach
- Rockshox RS Deluxe R rear shock
- Custom Haro OS rotor
- Manitou Circus Expert 100mm fork
- FSA Gradient 2-pc crankset, 30T alloy Megatooth chainring
- FSA Gradient 25mm rise bar & stem
- Haro Pivotal saddle and post
- Spank Ind. Spoon alloy DW 32h rims
- Pivit alloy disc cassette hubs w/14t Crmo cog
- Kenda Small Block Eight 2.35"/2.10" tires
- TRP HY/RD-C mechanical/hydraulic rear disc brake
- One size
FULL SPEC
| FRAMESET | |
|---|---|
| Frame | Haro Full X6 Aluminum Thread Slope | dual suspension frame | Internal head tube | 68mm Threaded BSA | ISCG Mount |

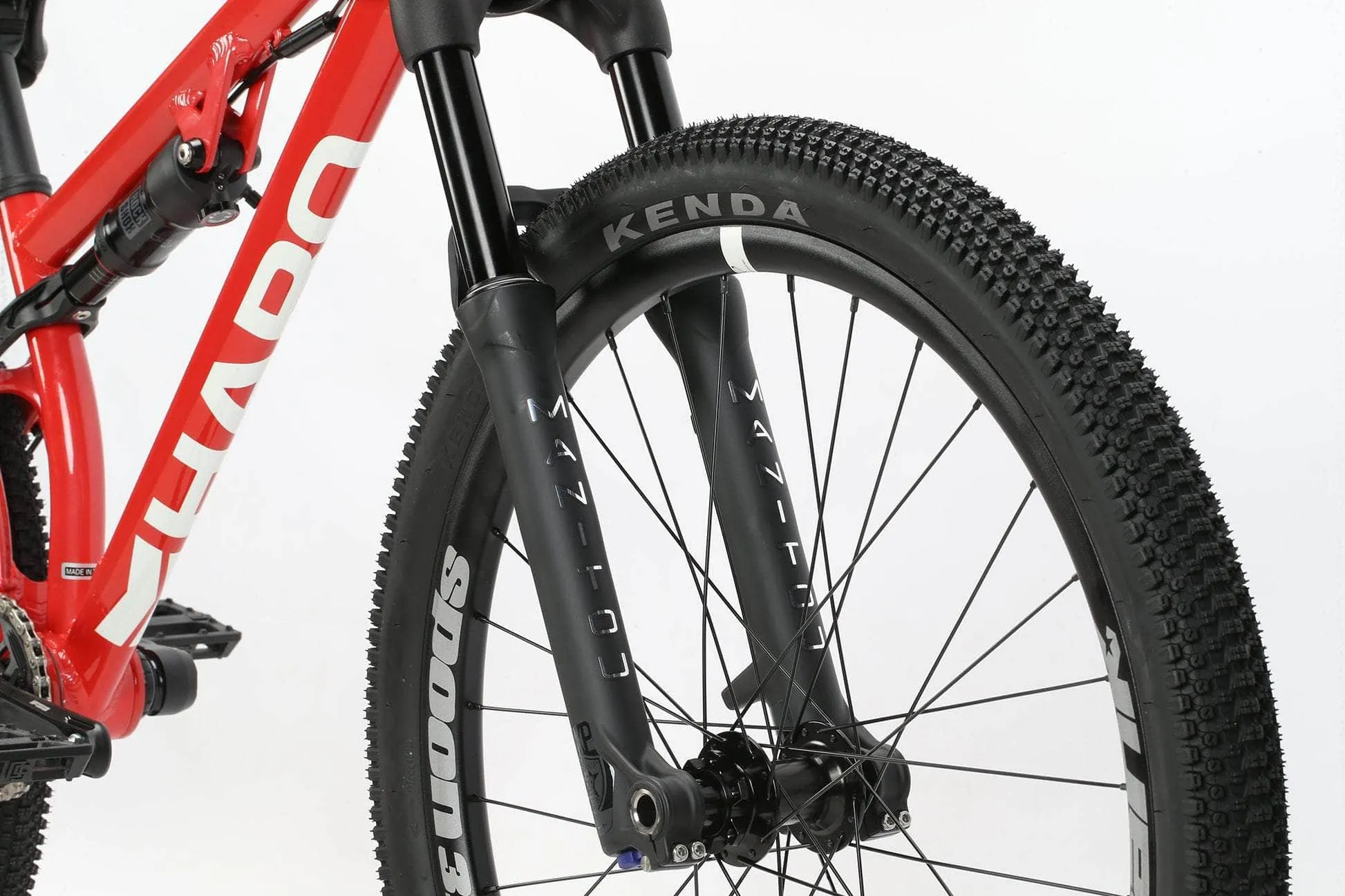

| Fork | Manitou Circus Expert | 100mm travel | 1.5" Tapered steer tube | 110x20mm thru-axle |

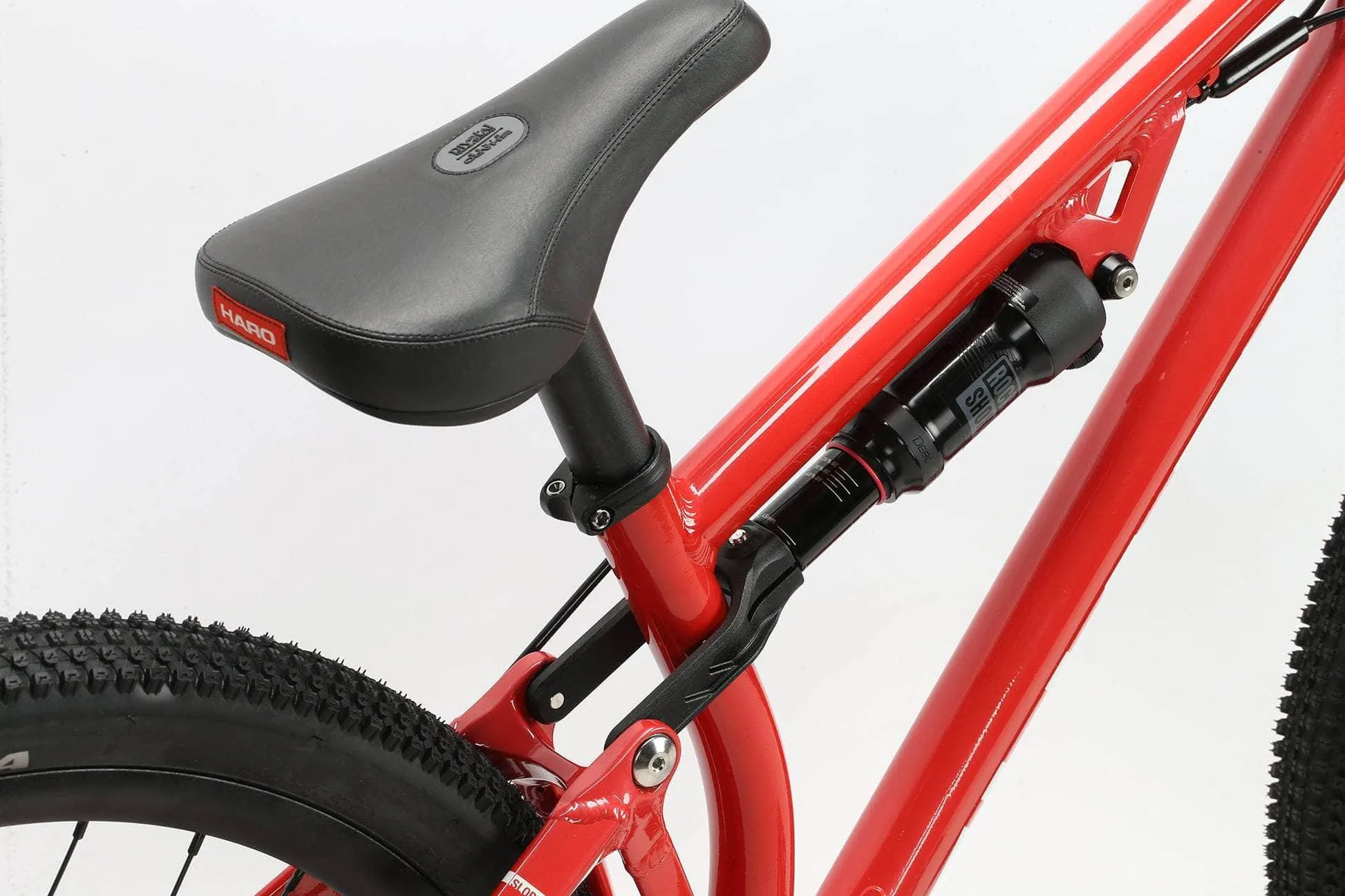

| Frame Shock | Rockshox RS Deluxe R | 190X45mm Debonair | 2 Tokens | MM Tune |
| Colors | Navajo Red |
| DRIVETRAIN | |

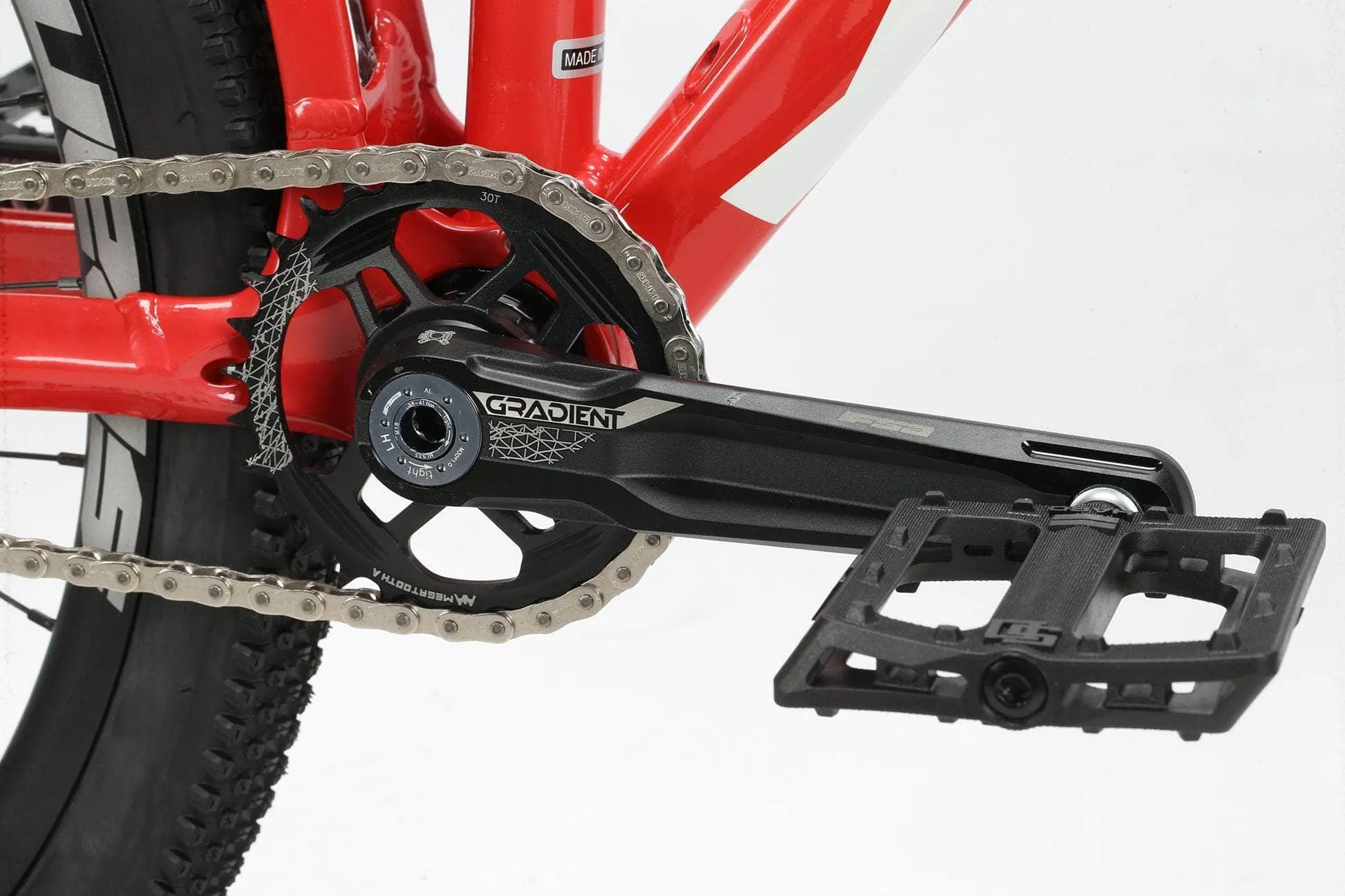

| Cranks | FSA Gradient Modular 1X Direct Mount | 170mm | Megatooth 30T Forged Aluminum Chainring |
| Pedals | Haro SD Nylon | Sealed bearings |
| Chain | KMC Z1 HX | 1/2" X 1/8" |
| Bottom Bracket | FSA BB-392-EVO | sealed bearings |
| Front Derailleur | |
| Rear Derailleur | |
| Derailleur Shifter | |
| Freewheel/Cassette | 14T Chromoly cog |
| WHEELS | |
| Tyres | Kenda Small Block 8 | 26x2.35" Front | 26"x2.10" Rear | 60 TPI |
| Wheels/Rims | Spank Ind. Spoon aluminum doublewall, 32h |
| Hubs | Pivit sealed bearing aluminum disc | singlespeed cassette | 20mm front thru axle | 32h |
| BRAKING SYSTEM | |

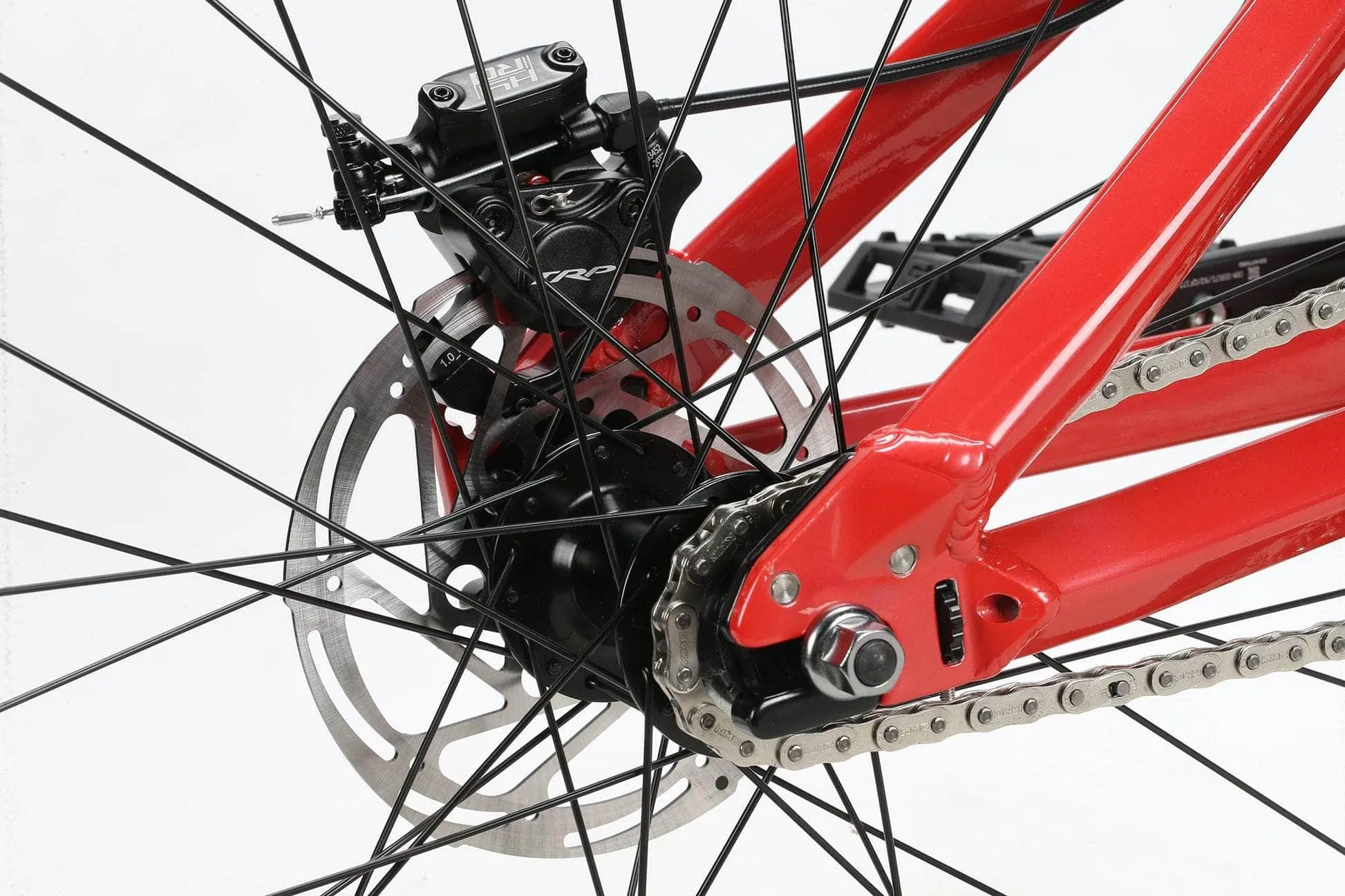

| Brakes | TRP HY/RD-C 160 | Cable / Hydraulic Disc Brake for IS Rear Mount | 160mm disc |
| Brake Levers | Odyssey Trigger for Single Gyro upper cable |
| OTHER COMPONENTS | |
| Grips/Tape | Velo Lock On |

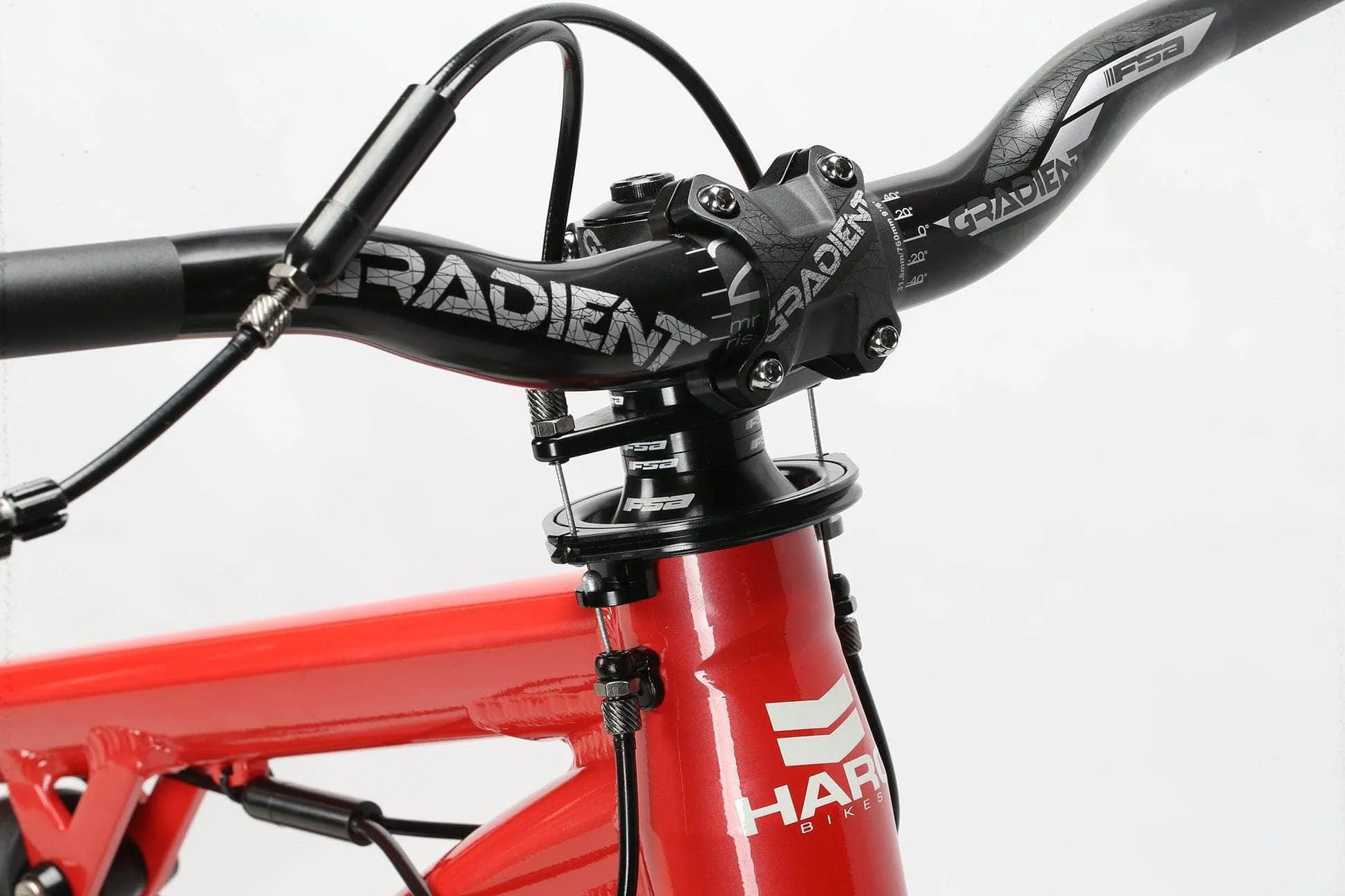

| Handlebar | FSA Gradient Riser | 25mm Rise | 9 Deg. Backsweep | 6 deg. Upsweep | 31.8mm Clamp |
| Stem | FSA Gradient 1-1/8" | 45mm Ext. |
| Headset | FSA # 51 | 1-1/8"-1.5" Aluminum | top | lower AC Bearing |
| Saddle | Haro Pivotal w/ hollow bolt |
| Seat Post | Pivotal aluminum | 31.6mm |
| Seat Clamp | Pivit aluminum 35mm |

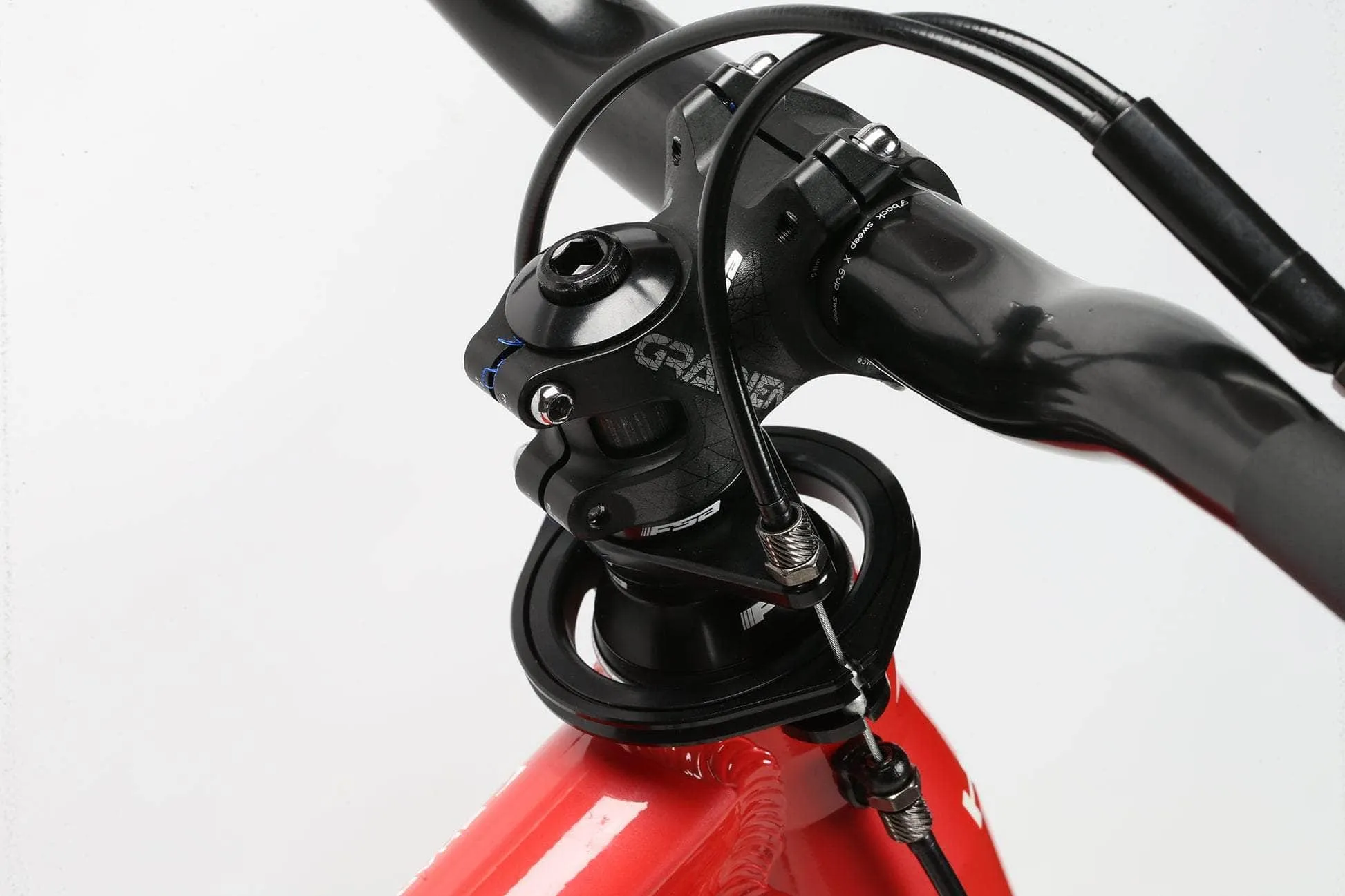

| Extras | Haro OS Teflon Bearing Rotor | Upper & Lower rotor cables |
