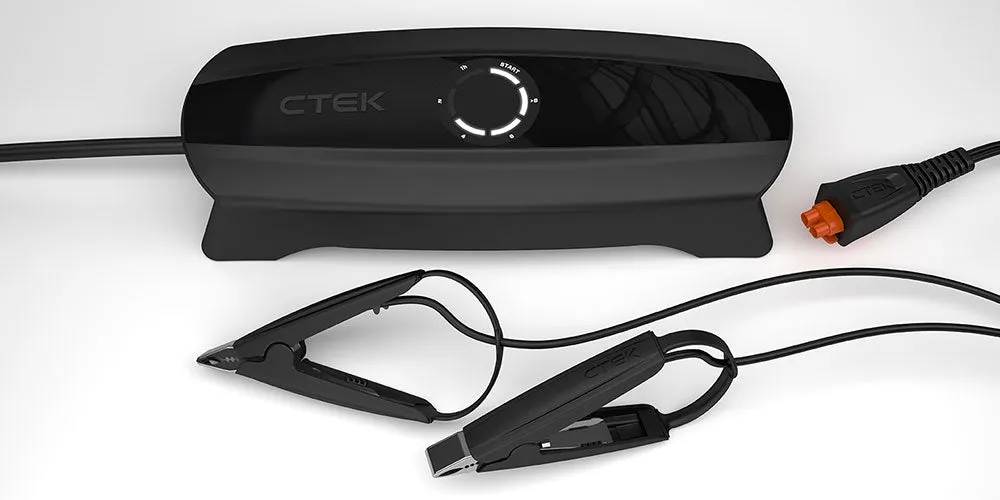

Charging any battery just got a whole lot simpler with the CTEK CS ONE. Its revolutionary APTO™ (Adaptive Charging) technology does all the thinking for you – you don’t even have to worry about which clamp goes where! This is the easiest charger you’ll ever use. Add in dedicated app control, to unlock additional features and you’ve got the most advanced charger available today. Super simple. Super smart. Simply CS ONE.

Part no. 40-331

Description

Revolutionary adaptive battery charger and maintainer.

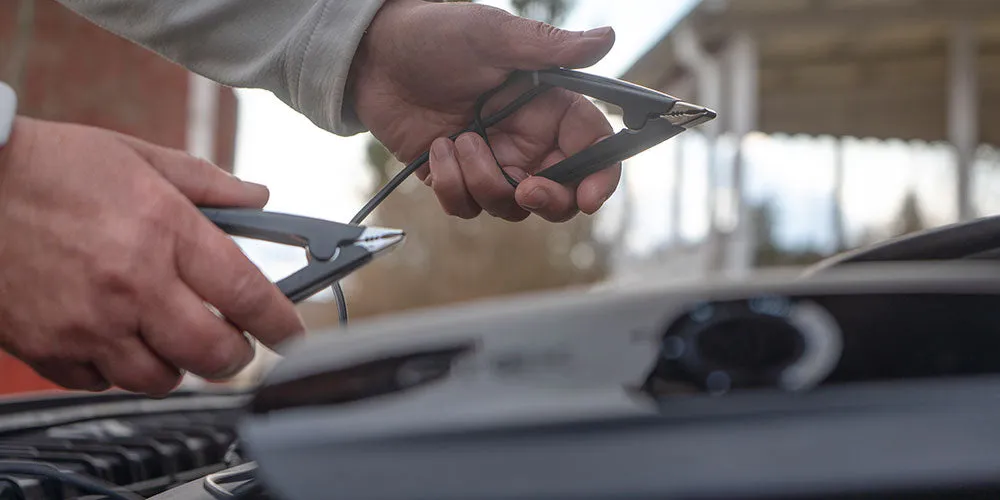

APTO™ Technology automatically recognises the type of battery you’re using, and then automatically delivers a customised charging program, telling you how long until the battery is charged and ready to go. No buttons to press or modes to select – just connect the CS ONE to any 12V battery and simply charge. Polarity free clamps mean you don’t even need to worry about which clamp goes where, so you’ll never make a wrong connection again. The clamps are spark free too, so don’t worry if you accidentally touch them together. Unlock additional features using the Bluetooth® enabled CTEK App. Select ‘RECOND’ to restore and recondition your battery. Choose ‘WAKE UP’ for lithium batteries with under voltage protection or to bring deeply discharged lead-acid batteries back to life. Select ‘SUPPLY’ to turn the CS ONE into a useful 12 V supply. You can also monitor the voltage and amps being delivered by the charger.

Features

• RECOND option to restore and recondition lead-acid batteries.
• WAKE UP option to revive seemingly dead lithium and lead-acid batteries.
• 12V SUPPLY to support the battery during service work and retain contact power to the vehicle during battery replacement / removal.
• ADVANCED SETTINGS to monitor charger voltage & amperage.
• Can be left safely connected for long periods during maintenance charging.

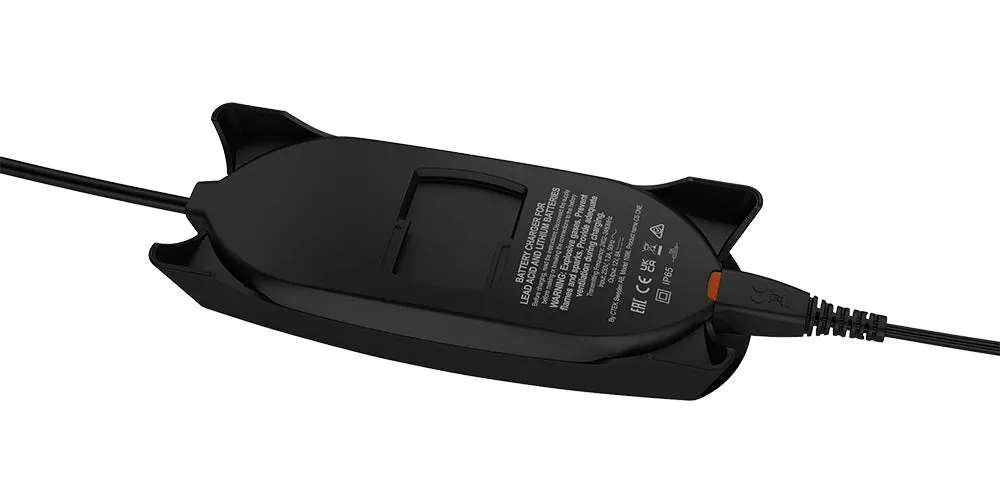

• New durable design to make it easy to handle, with unique mounting system on the back for quick connection to CS accessories.
• 5 year warranty.



  Technical data




  Battery capacity

  3–180 Ah

  Battery capacity CEC-400

  3–180 Ah

  Charging category

  AC charging

  Back current drain*

  Corresponding to less than 1.5 Ah/month

  Battery voltage

  12 V

  Battery chemistry

  Lead acid; Lithium-ion

  Ambient operating temperature

  -30 °C to 50 °C

  Cooling

  Natural convection

  Input

  220–240 VAC, 47–63 Hz, 1.2 A

  Output

  12 V, 8.0 A

  Start voltage

  1.5 V lead-acid battery types. 1.5 V LiFePO₄.

  Frequency

  50 Hz

  Ripple**

  Less than 4 %

  Connectivity

  BLUETOOTH® LE 5.1

  Battery types

  12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄

  Temperature compensation

  Built in charge voltage compensation according to ambient temperature.

  Compliance

  ETSI EN 300 328; RED; EN 61000-6-3; EN 61000-6-1; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 60 335-2-29; EN 60335-1; SS-EN ISO 13732-1:2008

  Enclosure material

  Plastic

  Rated voltage (Input)

  230 V

  Degree of protection

  IP65

  Mains cable length (input)

  1.4 m

  App support

  CTEK App for Android and IOS

  Dimensions (L x W x H)

  235 x 88 x 52 mm

  Net weight (unit with cables)

  0.675 kg

  User interface

  LED symbols; Smartphone display (free of choice)

  Detachable charging cable length (ouput)

  2 m

  Packaging size (L x W x H)

  288 x 178 x 55 mm

  Warranty

  5 years

  Warranty, info

  Limited Warranty

  Power plug type

  Type G

  *) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.

  **) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

  CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty.
