Description

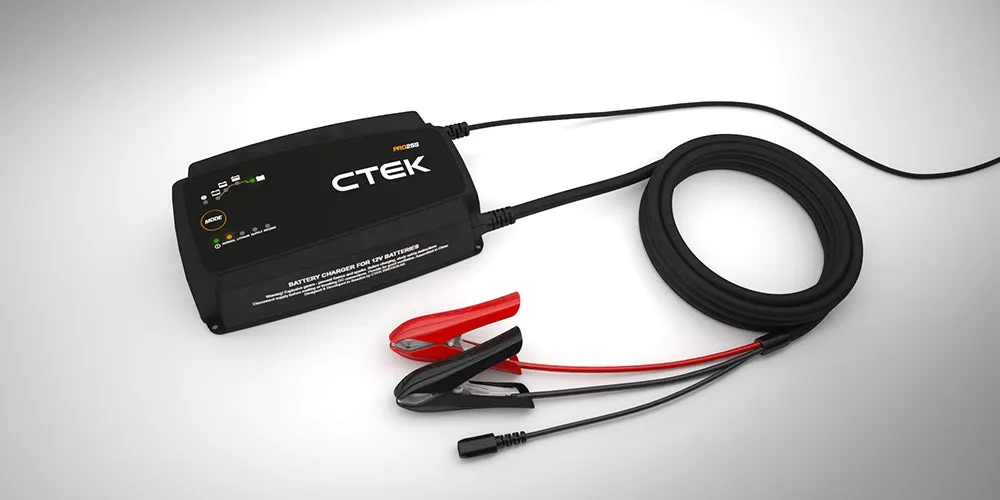

25A charger and power supply for workshops and showrooms.

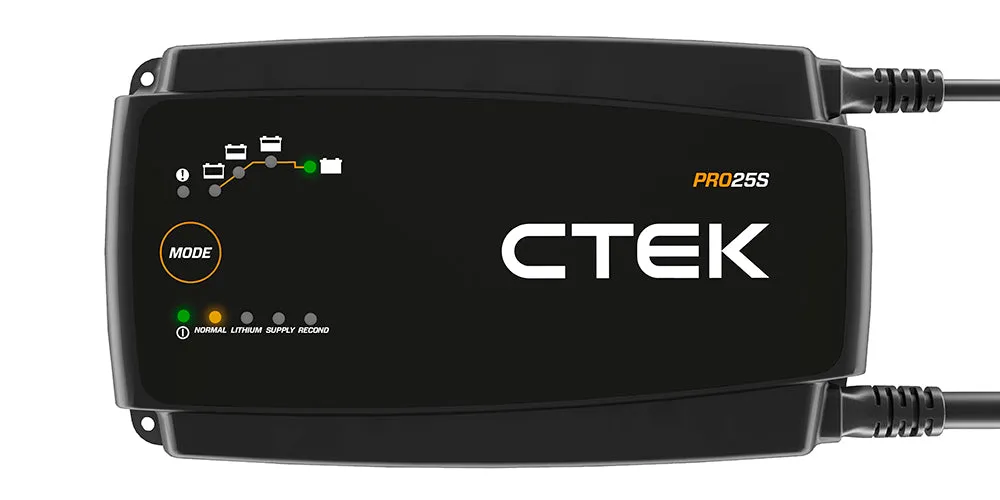

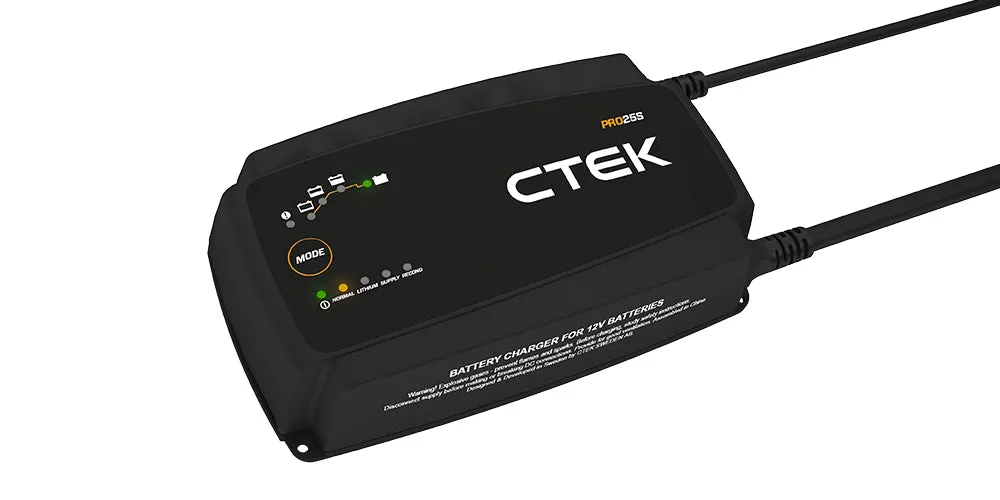

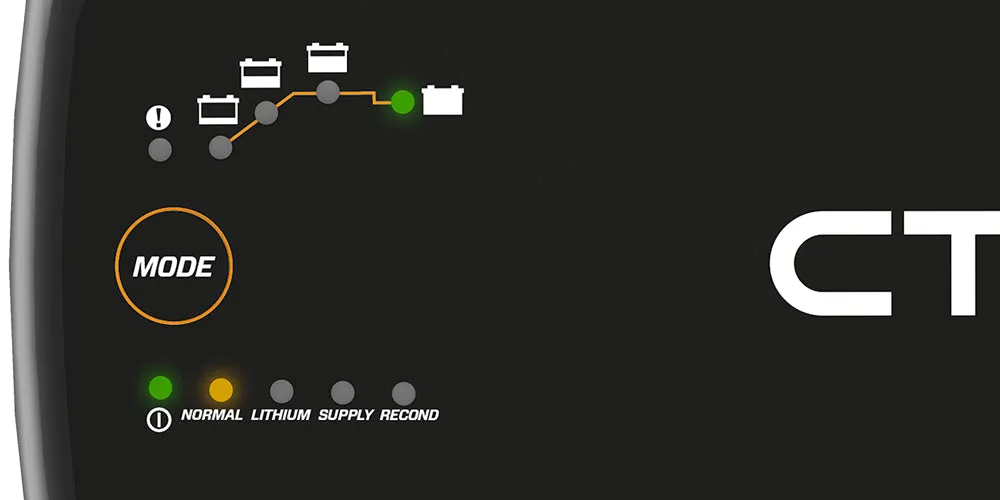

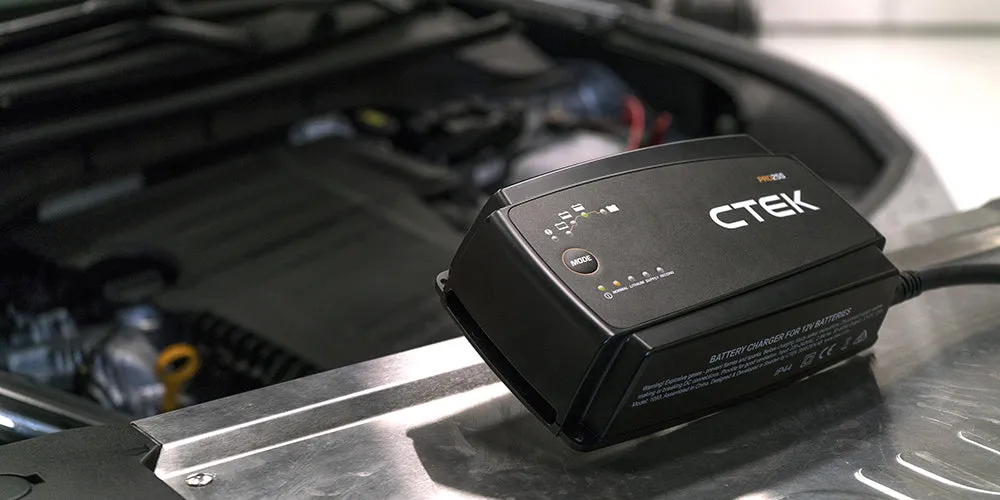

Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25S has a dedicated lead-acid battery reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25S is designed to ensure easy handling in both the workshop & the showroom. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment.
Features
- Integrated safety features, so it’s safe for the battery & the vehicle.
- Built-in temperature sensor to achieve maximum charge levels
- Dedicated lead-acid reconditioning programme to restore battery life and recondition flat batteries.
- IP44 classified for outdoor use
- Lightweight & highly portable
- Tough & robust
Technical data
- Battery capacity
- 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄.
- Charging category
- AC charging
- Back current drain*
- Corresponding to less than 1 Ah/month
- Battery voltage
- 12 V
- Battery chemistry
- Lead acid; Lithium-ion
- Ambient operating temperature
- -20 ˚C to 50 ˚C
- Cooling
- Fan
- Input
- 220–240 VAC, 50–60 Hz, 2.9 A
- Output
- 14.4/15.8/13.6 V, 25 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 25 A, LiFePO₄.
- Start voltage
- 2.0 V
- Ripple**
- Less than 4 %
- Battery types
- 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
- Degree of protection
- IP44
- Gross weight (unit in box)
- 2.2 kg
- Dimensions (L x W x H)
- 235 x 130 x 65 mm
- Charging cable length (output)
- 2 m
- Net weight (unit with cables)
- 1.8 kg
