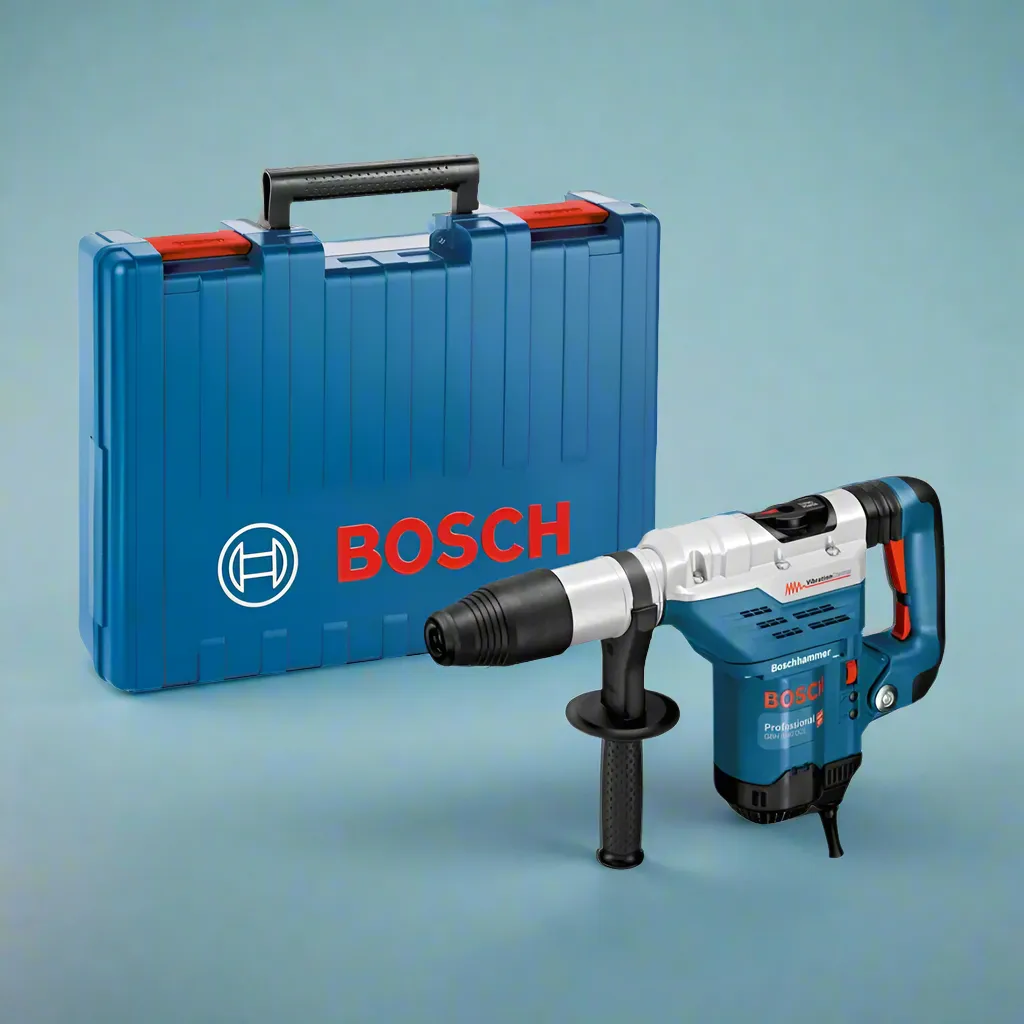

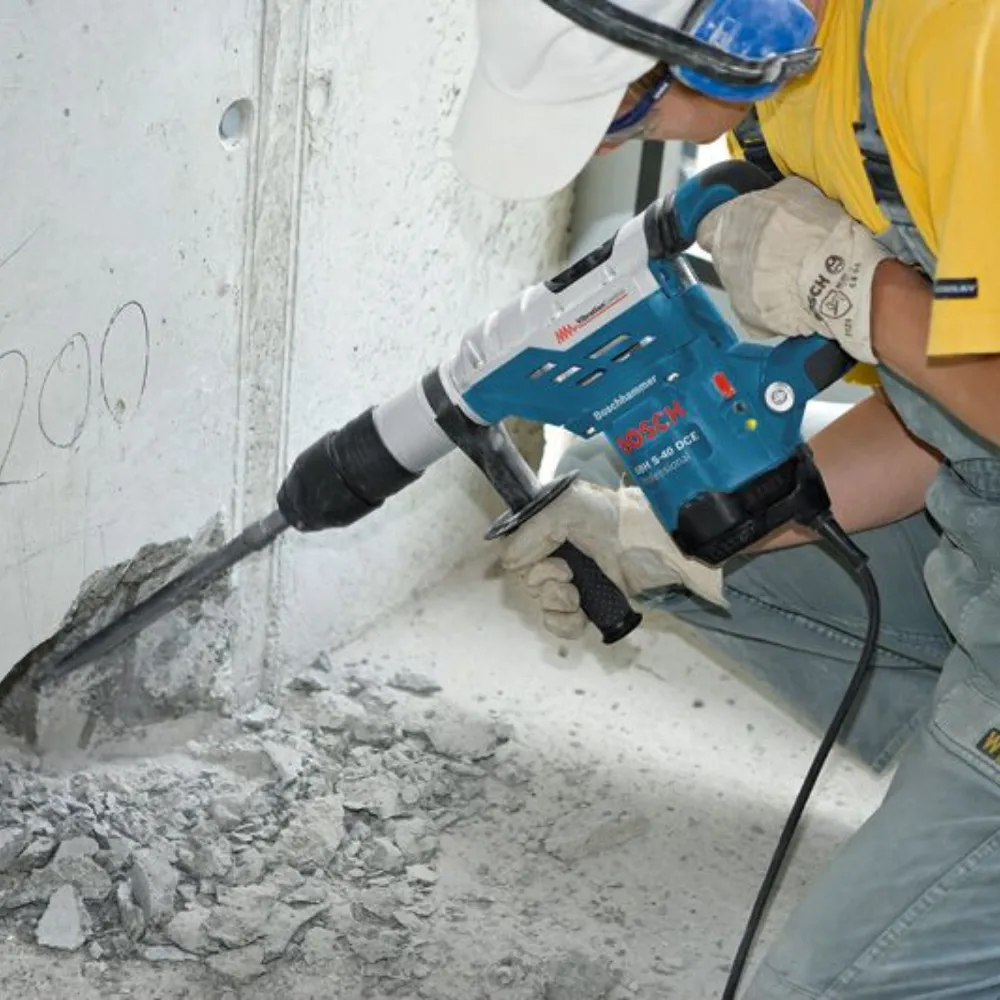

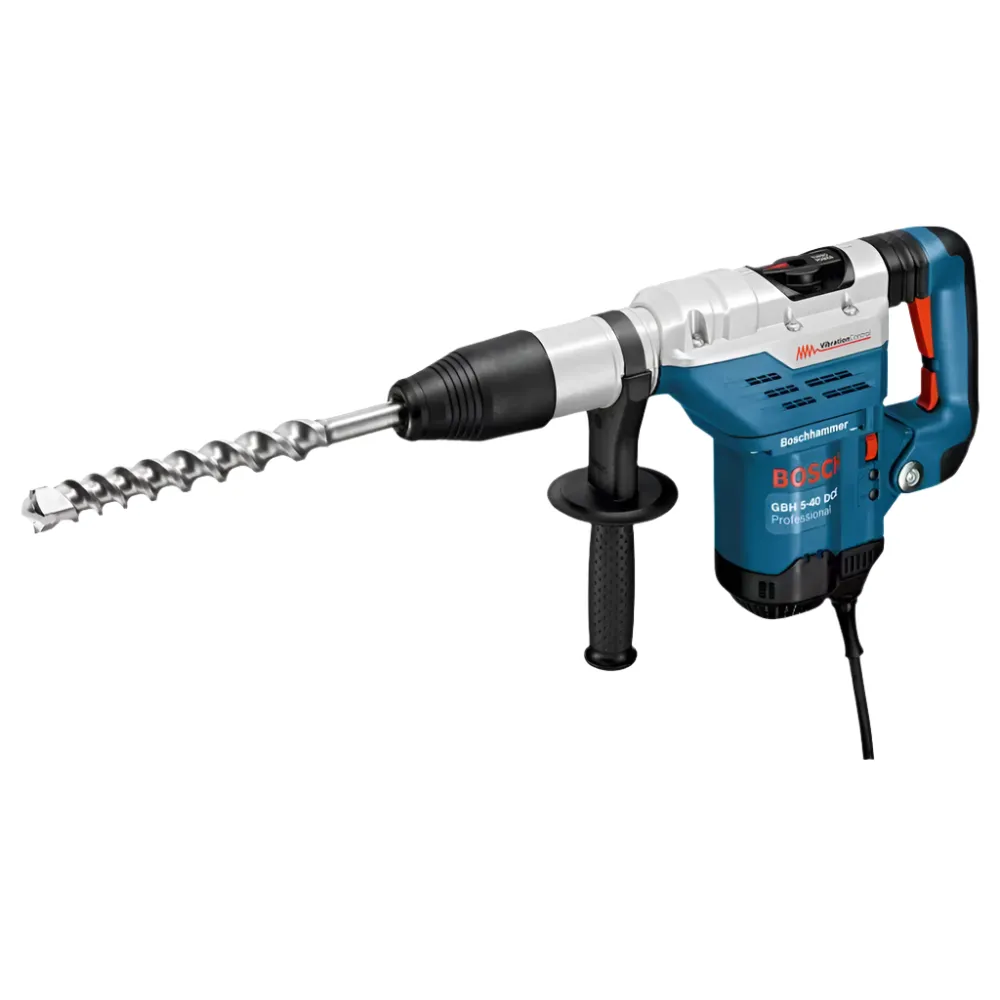

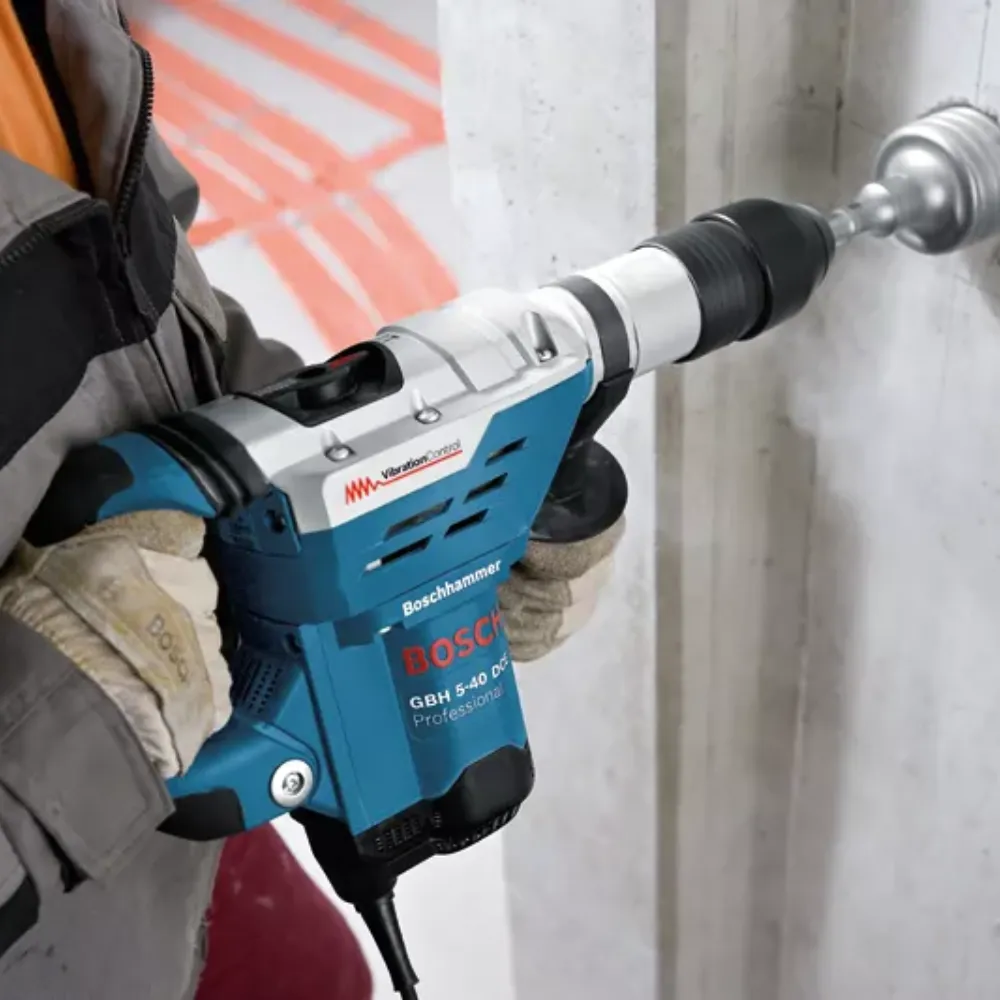

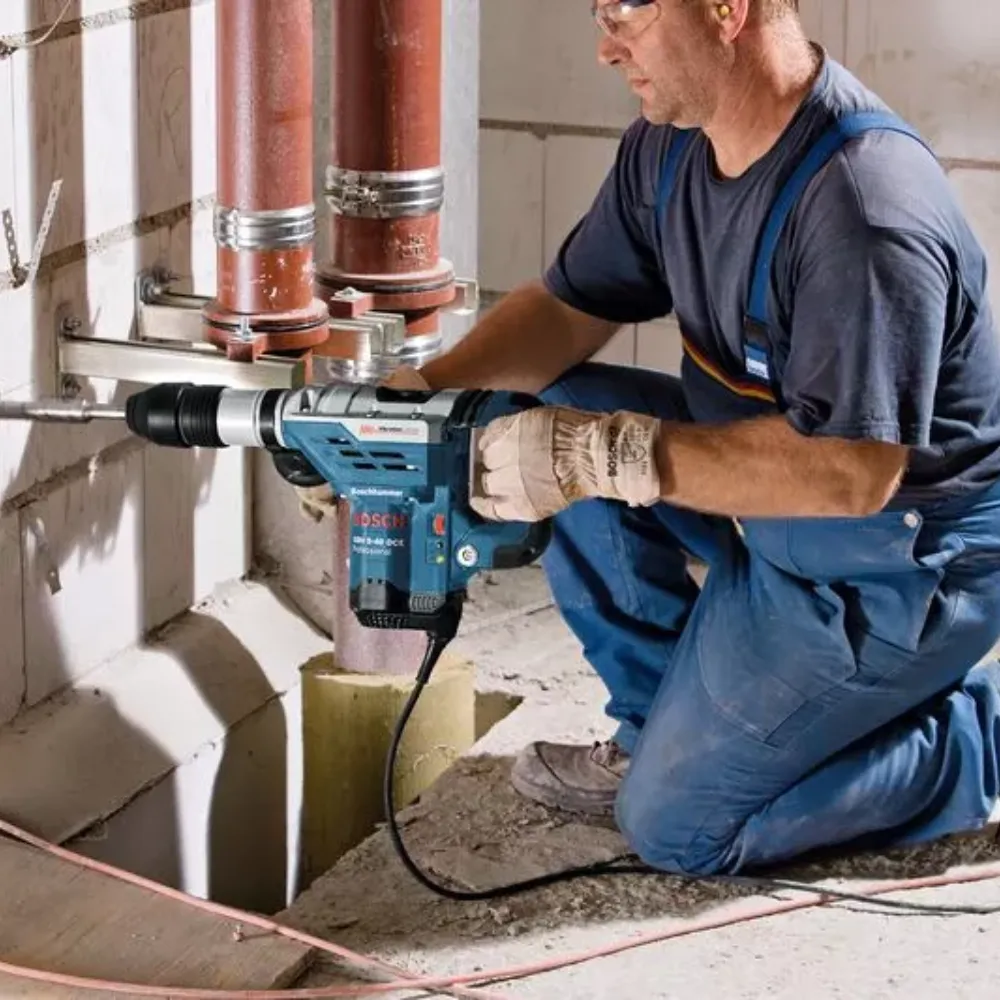

The Bosch GBH 5-40 DCE SDS-Max Rotary Hammer is a high-performance tool designed for fast drilling and chiseling in concrete and masonry. Featuring a powerful 1150W motor and impact energy of 8.8J, this hammer drill delivers the fastest drilling rate in its class. It is equipped with SDS Max technology for easy, one-handed tool changes and Vibration Control, reducing fatigue during prolonged use.
Key Features
- Powerful 1150W motor for fast drilling and chiseling
- Impact energy of 8.8J for heavy-duty applications
- SDS Max system for quick and easy bit changes
- Vibration Control (10 m/s² for chiseling, 8 m/s² for drilling) for enhanced user comfort
- Variable speed control (165 – 330 rpm) for precision performance
- Durable and robust construction for long-lasting use
Technical Specifications
- Model: Bosch GBH 5-40 DCE
- Rated Input Power: 1150W
- Impact Energy: 8.8J
- Tool Holder: SDS Max
- Voltage: 230V
- Weight: 6.8 kg
- Impact Rate at Rated Speed: 1,500 – 2,980 bpm
- Rated Speed: 165 – 330 rpm
Drilling Capacity
- Concrete (hammer drill bits): 12 – 40mm
- Optimal Range (hammer drill bits): 18 – 32mm
- Concrete (breakthrough drill bits): 45 – 55mm
- Concrete (core cutters): 40 – 90mm
Noise & Vibration Levels
- Sound Pressure Level: 94 dB(A)
- Sound Power Level: 105 dB(A)
- Vibration Emission (Hammer Drilling in Concrete): 13.5 m/s² (Uncertainty K: 1.5 m/s²)
- Vibration Emission (Chiseling in Concrete): 10.5 m/s² (Uncertainty K: 1.5 m/s²)
m/s²)
The Bosch GBH 5-40 DCE SDS-Plus Rotary Hammer delivers 1100W of power for high-performance drilling and chiseling. Designed for professionals, it features vibration control and robust construction for durability in demanding applications.
